8/12/24 Cores MM OM4 Female Fiber Optical MPO MTP Low Insertion Loss

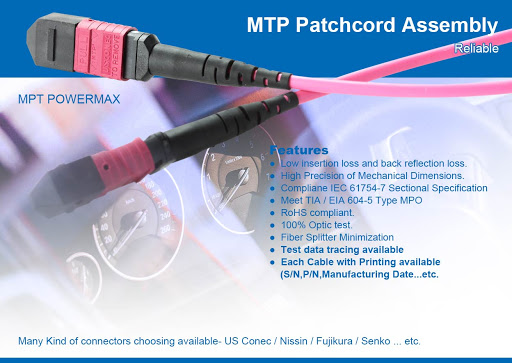

Low Insertion Loss 8/12/24 Cores MM OM4 Female Fiber Optical MPO/MTP Patch Cord
Product Description
MPO/MTP ribbon and trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments, reducing network installation or reconfiguration time and cost.
MTP/MPO connectors are used to interconnect cassettes, panels, or fan outs, available in fiber types in standard 8, 12, 24, or 48 core versions using a compact and rugged microcables structure. The compact cable optimizes cableway use and improves airflow.
These MPO/MTP cables are built with the highest quality components. Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Product Features
- Stable and high quality
- Meet IEC, JIS, Bellcore international standard requirements
- High performance and cost effective
- Mass and flexible production meeting various demand
- Custom assemblies available upon request
- OEM available upon request
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Martial
- Optical Switch interframe connections
Technical Specifications
| Parameter |
Specification |
Parameter |
Specification |
| Connector A |
LC, SC, ST, FC, etc. |
Connector B |
MPO/MTP |
| Fiber Mode |
SM (G652, G655, G657); MM (OM1-OM5) 50/125μm |
Minimum Bend Radius |
7.5mm |
| Insertion Loss |
Standard: ≤0.35/0.7 (Typical/Max)
Low Loss: ≤0.2/0.35 (Typical/Max) |
Return Loss |
SM: APC: 60dB
MM: PC: 25dB |
| Attenuation at 850nm |
≤2.3dB/km |
Attenuation at 1300nm |
≤0.6dB/km |
| Installation Tensile Load |
100 N |
Long-Term Tensile Load |
50 N |
| Operating Temperature |
-10°C to +70°C |
Storage Temperature |
-40°C to +85°C |
How to Order
Please specify the following parameters when ordering:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core, etc.
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- MPO/MTP connector: specify method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
